Water Treatment
Water & Wastewater Treatment Plants :
At Syndic, we provide complete and customized Water & Wastewater Treatment solutions tailored to meet the unique needs of construction sites and infrastructure developments. From high-rise buildings and commercial complexes to industrial estates and residential townships, our systems ensure safe, reliable, and regulatory-compliant water usage and discharge throughout the project lifecycle. Our offerings cover the entire spectrum of water treatment—from raw water purification to sewage and effluent recycling. We design, supply, install, and commission systems such as Pressure Sand Filters, Softeners, RO Plants, STPs (SBR/MBBR/MBR), ETPs, and ZLD units that are engineered for durability, efficiency, and ease of maintenance. These plants are compact, scalable, and equipped with advanced automation for minimal manpower and operational costs. They help reduce dependency on freshwater sources, enable water reuse for curing, landscaping, and flushing, and support compliance with CPCB/SPCB discharge norms. With proven experience and successful installations across India, Syndic’s water solutions contribute to green building certifications like IGBC, LEED, and GRIHA, while promoting long term sustainability in construction.
Water Treatment Systems
Our water treatment systems are engineered to ensure safe, mineral-balanced, and quality assured water for domestic, process, and construction applications. These systems are scalable, modular, and designed for long-term operational efficiency.
Water is a critical resource on every construction site — not only for day-to-day operations but also for ensuring regulatory compliance and environmental responsibility. At Syndic, our Water and Wastewater Treatment solutions are engineered to maximize efficiency, reduce water consumption, and promote sustainable construction practices. With our robust systems, technical expertise, and commitment to quality, we help our clients meet present needs while securing future resources. Whether your project is residential, commercial, or industrial, trust Syndic to deliver reliable, cost-effective, and eco-friendly water management systems — built to perform, built to last.
Water Treatment Systems

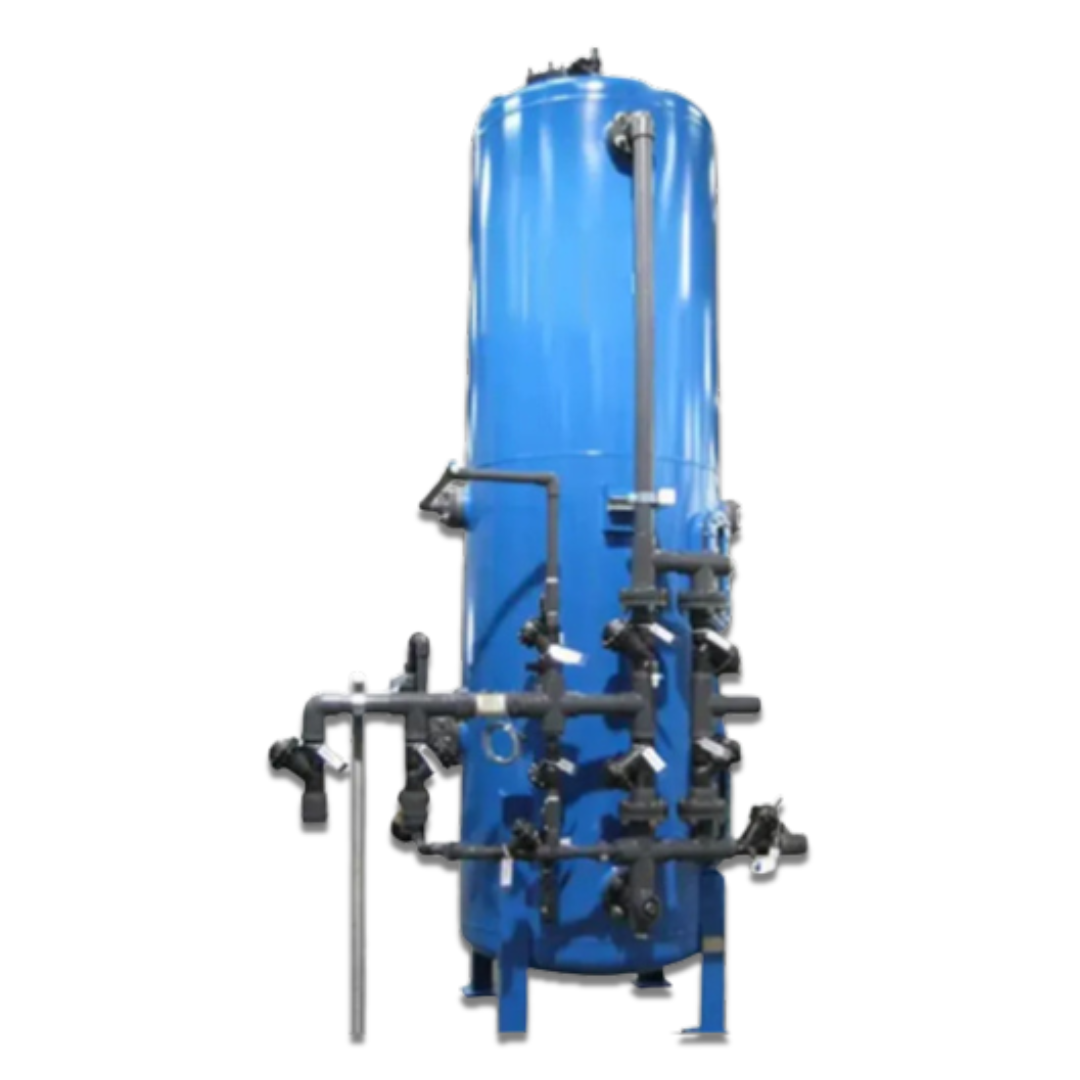

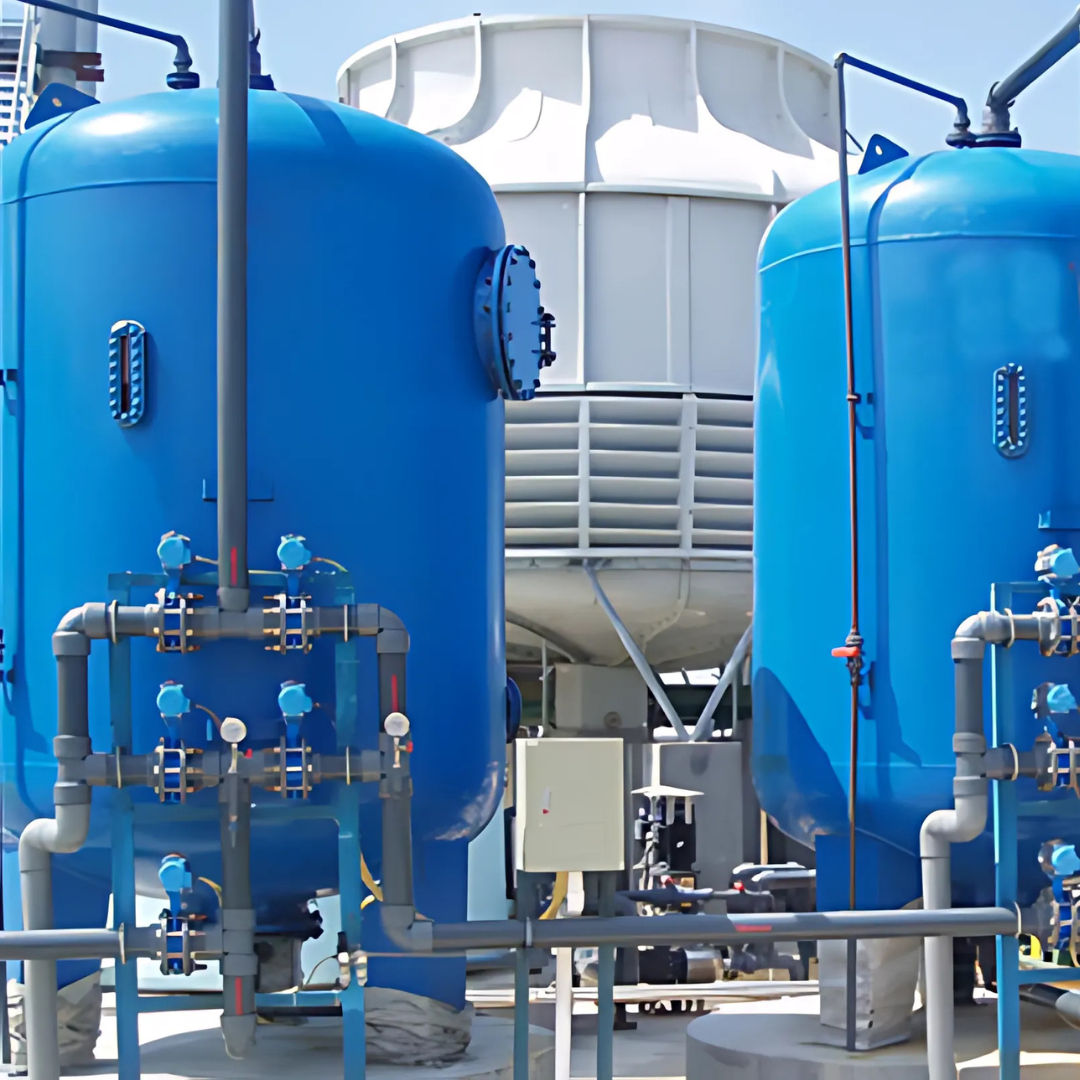

Pressure Sand Filter (PSF)
Purpose: Removal of suspended solids and turbidity from raw water.
Technology :
– Multi-layered media filtration (gravel, coarse & fine sand)
– Operates under pressure (2–3.5 kg/cm²)
Applications :
– Pre-treatment for RO and softeners
– Utility water for construction sites
System Features :
– MS/FRP/SS vessels
– Multiport or diaphragm valves
– Manual, semi-auto, or auto control
– Capacity Range: 1 m³/hr to 100 m³/hr
Water Treatment Systems
Activated Carbon Filter (ACF)
Purpose: Removal of free chlorine, organic matter, taste, and odor.
Technology :
– Adsorption via high-grade coconut shell activated carbon
Applications :
– RO pre-treatment
– Treated sewage polishing
– Construction water reuse
System Features :
– Media replacement indicators
– Backwash arrangement
– Capacity Range: 1 m³/hr to 100 m³/hr
Water Treatment Systems
Demineralization (DM) Plants
Purpose: Production of ultrapure water through ion removal.
Technology:
– Two-bed system: strong acid cation & strong base anion resin
– Option of degasser tower for CO₂ removal
Applications:
– Paint booths
– Cooling towers
– Boiler feed
Features:
– Conductivity monitoring
– Acid/alkali dosing automation
Water Treatment Systems
Reverse Osmosis (RO) Plants
Purpose: Removal of dissolved salts, TDS, fluoride, heavy metals.
Technology:
– Spiral wound polyamide membranes
– High-pressure multistage pumps
– Pre-filtration: PSF + ACF + Micron Cartridge
Types:
– Compact RO: 250–1,000 LPH
– Industrial RO: 1,000–50,000+ LPH
Applications:
– Potable water
– Block curing, finishing work
– In-site labor camp water supply
Add-ons:
– Online TDS controller
– PLC/SCADA automation
Water Treatment Systems

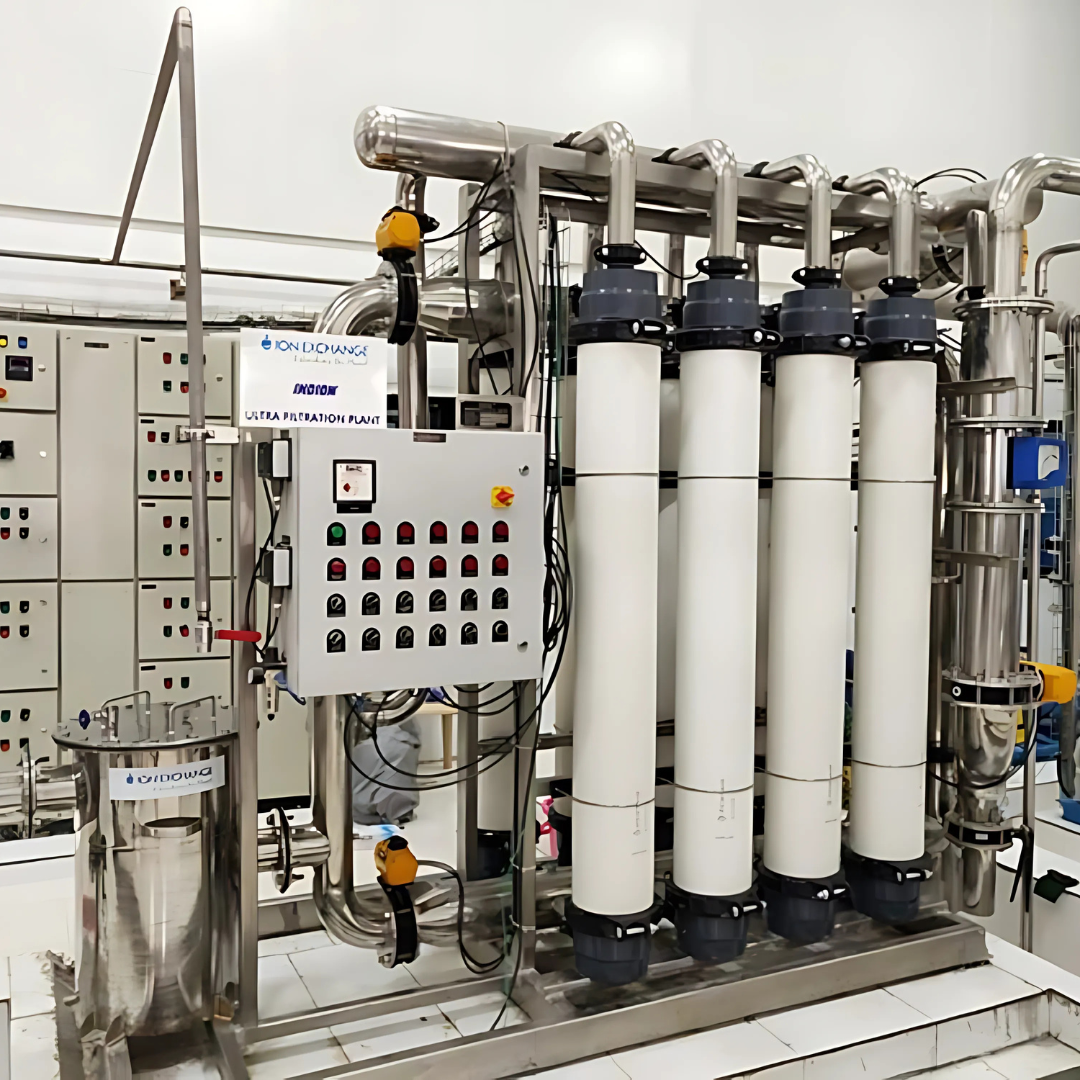

Ultrafiltration (UF) Systems
Purpose: Fine filtration for bacteria, viruses, and suspended solids.
Technology:
– Hollow fiber or tubular membrane modules
– Operating pressure: 1–3 bar
Applications:
– Pre-treatment for RO
– Tertiary treatment of treated wastewater
Benefits:
– 90% recovery
– Membrane life: 3–5 years
– Fully automatic skid systems
Water Treatment Systems
Disinfection Systems

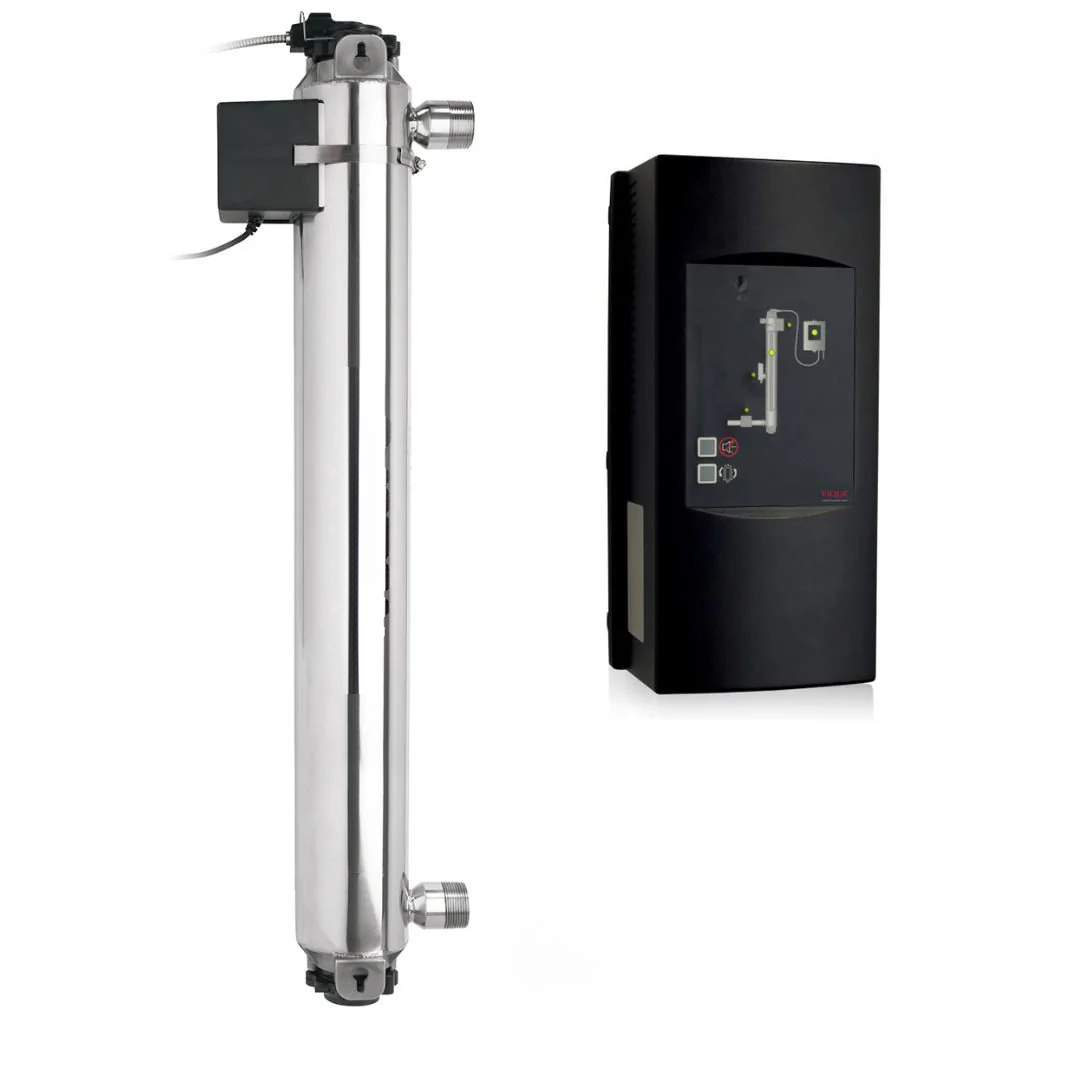

UV Disinfection
– Quartz-jacketed UV lamps
– Capacity: 1 to 200 m³/hr
– 99.9% pathogen kill
– Chlorination Systems
– Dosing pumps + chlorine solution tank
– Residual control via ORP sensors
– Skid mounted for plug-and-play
Water Treatment Systems

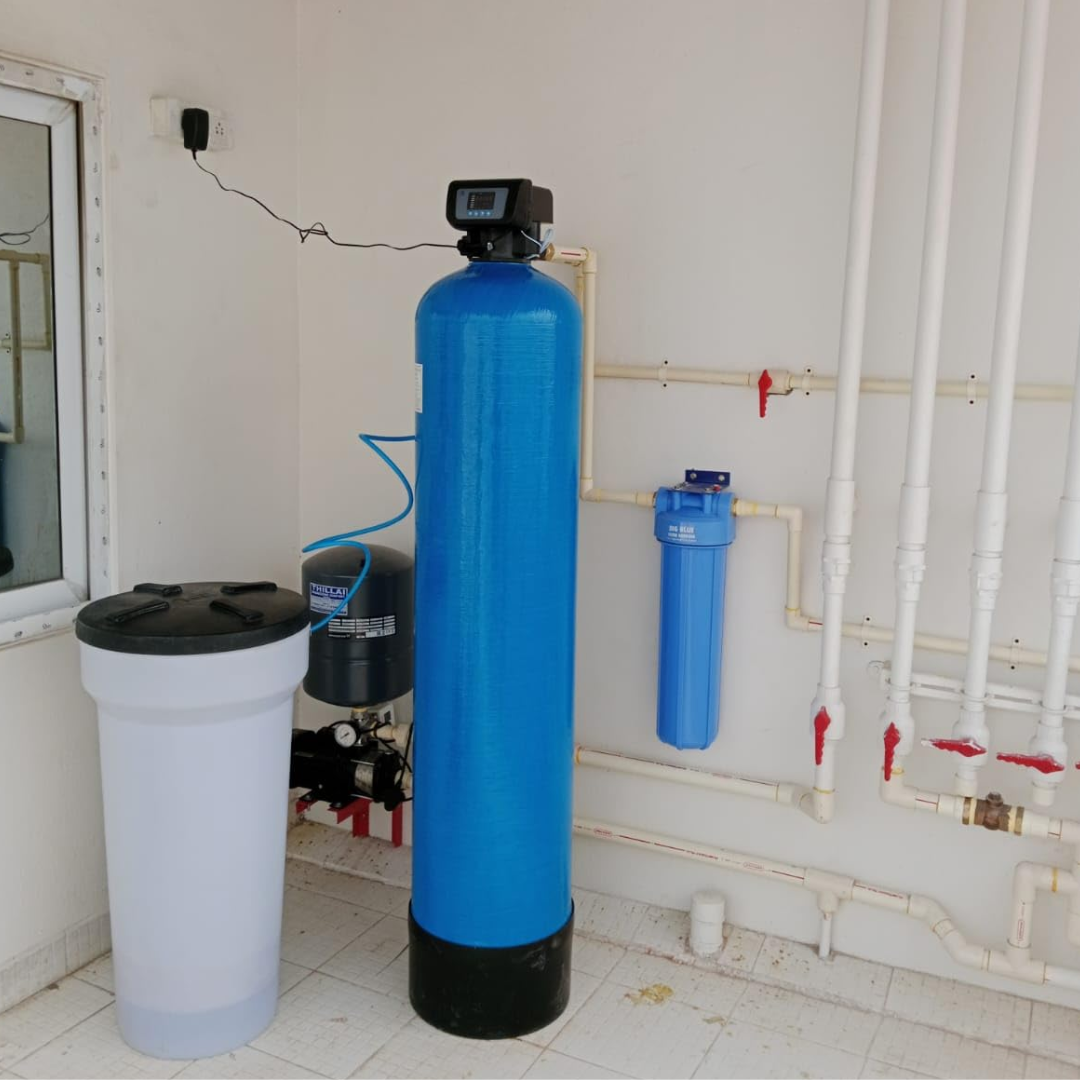

Water Softeners
Purpose: Removal of hardness ions (Ca²⁺, Mg²⁺) from raw water.
Technology:
– Ion exchange using cation resin
– Regeneration with brine solution
Types:
– Domestic: 0.5–1 m³/hr
– Semi-industrial: 1–5 m³/hr
– Industrial: 5–50+ m³/hr
Applications:
– Cooling tower makeup
– HVAC systems
– Curing, plasterwork, and tile fixing
Features:
– Hardness sensors
– Auto regeneration options
– Flow meters and bypass valves
Water Treatment Systems
Mixed Bed Units
Purpose: Final polishing stage to achieve conductivity
Technology:
– Mix of cation and anion resins
– Regeneration with separate cycles
Applications:
– Laboratory water
– Electronics manufacturing
– Pharmaceuticals in construction sites
