Waste Water Treatment
Wastewater Treatment Systems
Designed to meet CPCB/SPCB discharge norms, our wastewater systems treat, recycle, and repurpose sewage and industrial effluent — ensuring environmental safety and water reuse potential.
– SBR (Sequential Batch Reactor) Technology
– MBBR (Moving Bed Biofilm Reactor) Technology
– MBR (Membrane Bioreactor) Technology
– Anaerobic Technology
4. Sludge Handling & Dewatering
Sewage Treatment Plants (STP)

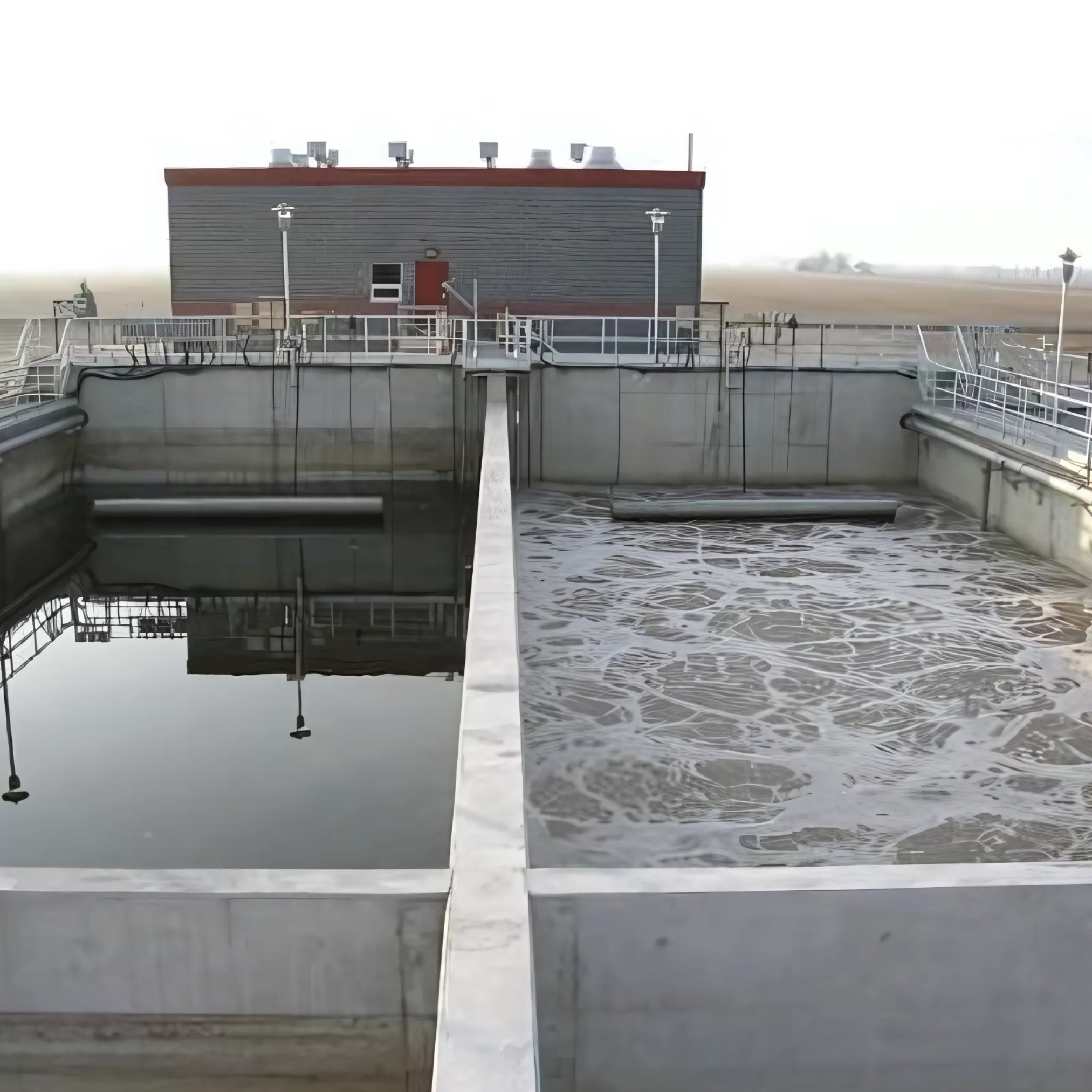

SBR (Sequential Batch Reactor)
– Phased batch operation:
Fill → React → Settle → Decant
– Energy-efficient blowers & decanters
– PLC-controlled cycles
– Ideal for townships & gated communities
– Capacity: 10 to 1,000+ KLD
MBBR (Moving Bed Biofilm Reactor)

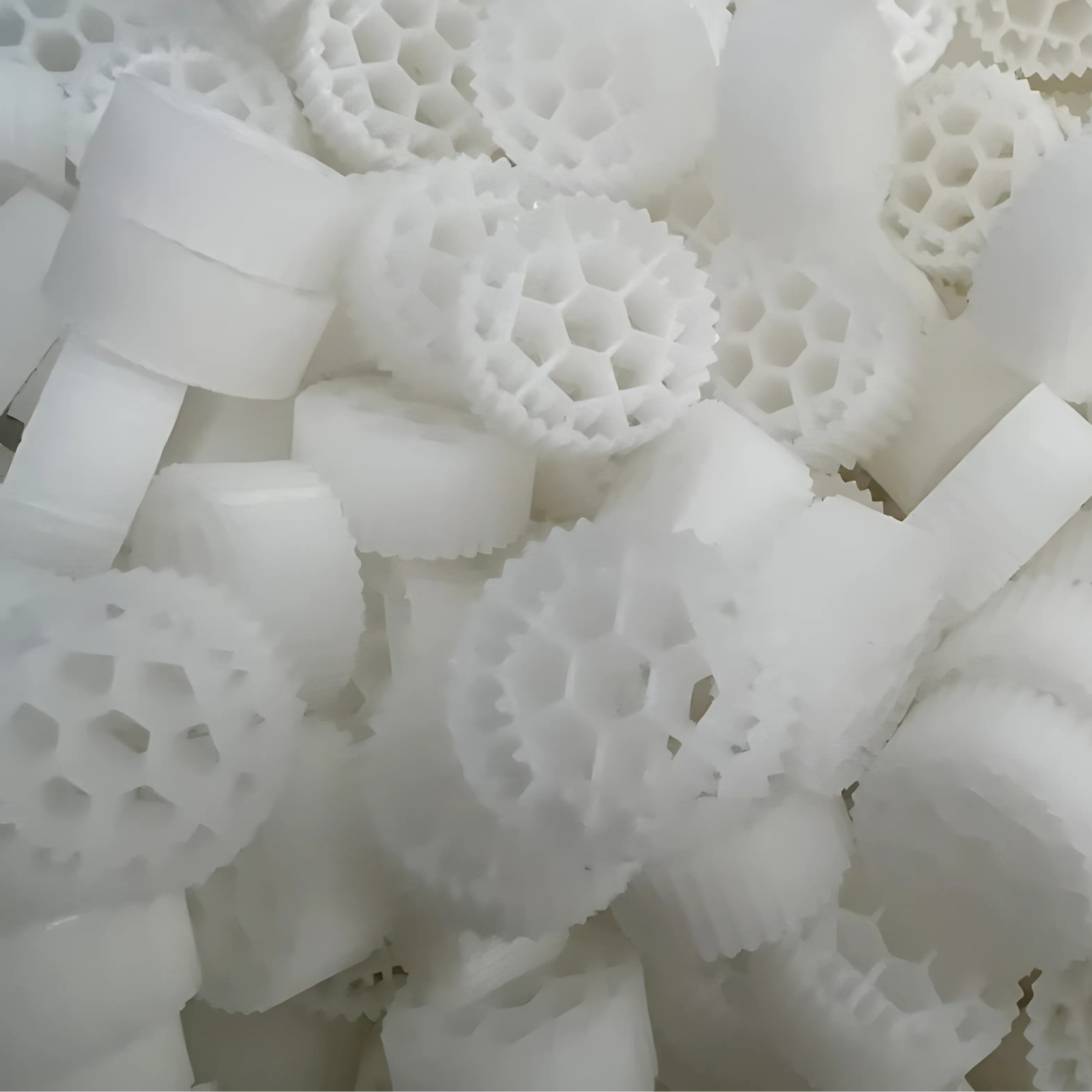

– Plastic bio-media increases active surface area
– Robust, low-maintenance, compact
– Suitable for fluctuating loads
– Capacity: 10 to 500 KLD

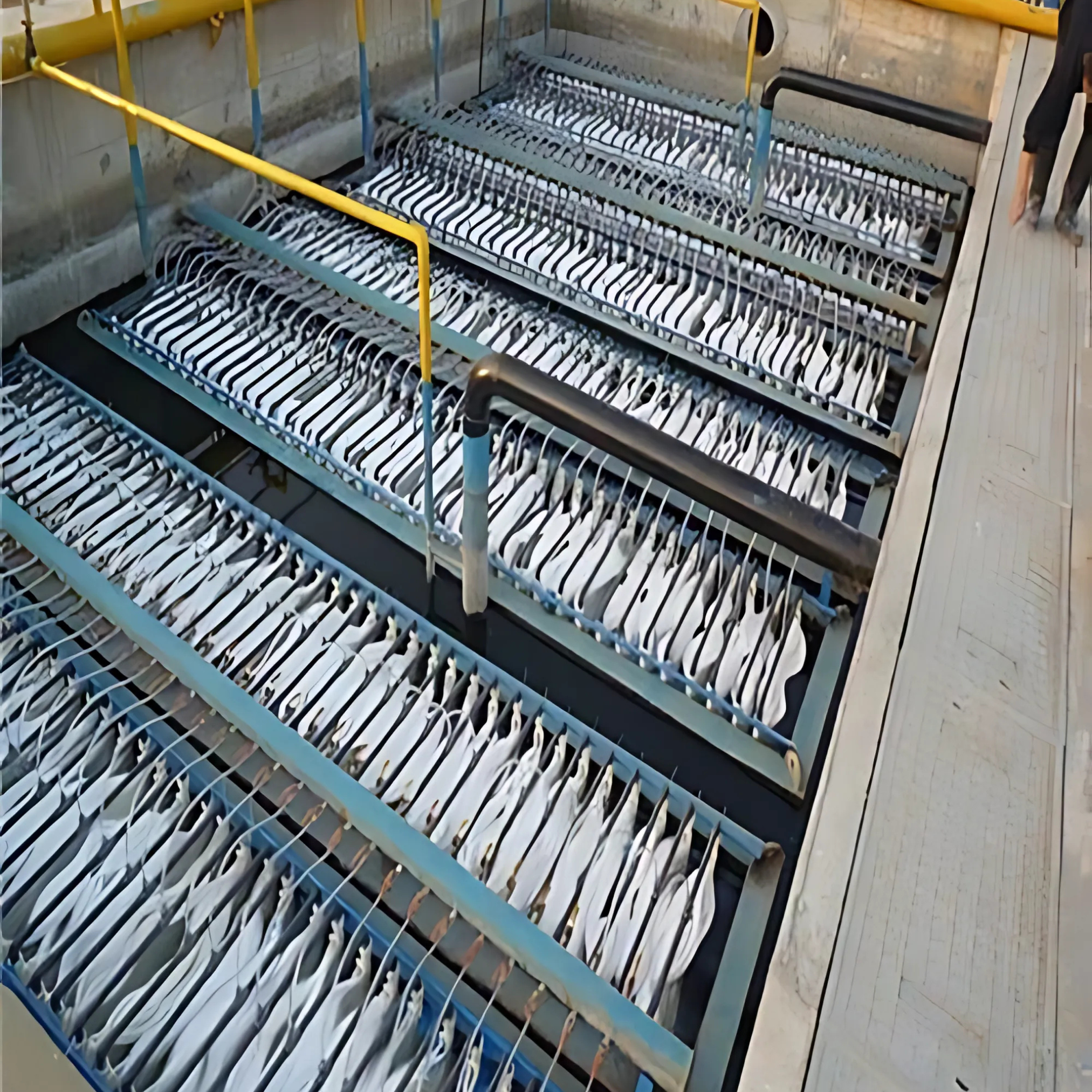

MBR (Membrane BioReactor)
– Combines biological + membrane filtration
– Consistent outlet: BOD <5, turbidity <1 NTU
– Water reusable for flushing, landscaping
– Compact design, odorless
– Capacity: 10 to 200 KLD
Wastewater Treatment Systems
Effluent Treatment Plants (ETP)
Processes:
– Equalization → Neutralization → Coagulation/Flocculation → Aeration →
Clarification → Filtration
– Optional: Oil & grease traps, lamella separators
Applications:
– Ready-mix plants
– Fabrication units
– Concrete wash water
– Discharge Standards: As per MOEF/CPCB guidelines
Wastewater Treatment Systems
Zero Liquid Discharge (ZLD)
– Multi-stage RO + Evaporators + Crystallizers
– Recover 95–98% of water
– Sludge management systems included
– Application: Greenfield construction projects, SEZs
– Assures 100% regulatory compliance
